Cost Expectations
Is a Compressor Replacement Worth It on an Undercounter Cabinet?
It is the largest repair one of these can need, and whether it is worth doing comes down to a comparison the general cost guides never make: what the cabinet is worth. U-Line's current range spans more than three to one in price across appliances that are repaired in broadly the same way, and twenty of the seventy-six models are out of production — so the same repair is clearly right on a large dual-zone wine cooler and clearly wrong on a small out-of-production beverage center. Before accepting the diagnosis at all, three things are worth ruling out, and each of them is a smaller job. On this make a cabinet that runs constantly without reaching its set point is a temperature sensor far more often than a compressor, because the maker's own backup mode produces exactly that behavior while showing nothing. A condenser that cannot shed heat makes a healthy compressor run continuously and cut out on its own overload. And on the 5 Class the compressor runs under an inverter driver rather than a relay and an overload, and the driver is both the cheaper part and the more common failure. The starting figures for each of those are on their own cost pages.
The full guide
The comparison the general guides do not make
Every article about compressor replacement is written against a full-size refrigerator that is the only cold appliance in the house. The arithmetic there is straightforward and the answer is usually "repair it".
Undercounter refrigeration breaks that in both directions.
The current range spans more than three to one in price across appliances that look broadly similar and are repaired in broadly the same way. A compressor is a compressor; a small beverage center and a large dual-zone wine cooler are not.
And twenty of the seventy-six models are out of production, some since the 2000 Series. That does not make them unrepairable — most parts are available — and it does change what the cabinet is worth and how long sourcing takes.
The figure itself, with the reasoning that sets it, is on the compressor replacement cost page. This page is about whether you should be looking at that page at all.
Rule these out first, in this order
A temperature sensor. This is the big one on this make, and it is worth being blunt about. U-Line's own service manual says that when a zone thermistor fails, the unit continues to cool in a backup mode to preserve the integrity of the contents and otherwise operates normally. On the 2000 Series that backup runs ten minutes on and forty off, regardless of what the cabinet needs.
The result is a cabinet that runs and runs and never quite arrives — which is exactly how a failing compressor is described. The test is a bottle of water, a thermometer and a day, followed by reading the error log. Sensor replacement is a fraction of the work a compressor is.
The condenser. A coil that cannot shed heat makes a healthy compressor run continuously and cut out on its own overload. It is the maker's own first answer for both "not cold enough" and "runs too long", and it is the cheapest visit on the site.
The inverter driver, on the 5 Class. The service menu on these will set compressor RPM anywhere between 1,400 and 6,300, and the compressor sheet names the inverter as both starting device and overload. A compressor that will not start because its driver has failed and a compressor that has failed look identical from outside the cabinet — and they are different repairs.
The maker's own warranty. Sealed-system coverage outlives the rest of a warranty on this kind of appliance. If yours is inside it, the work belongs to U-Line rather than to us, and we will say so instead of quoting.

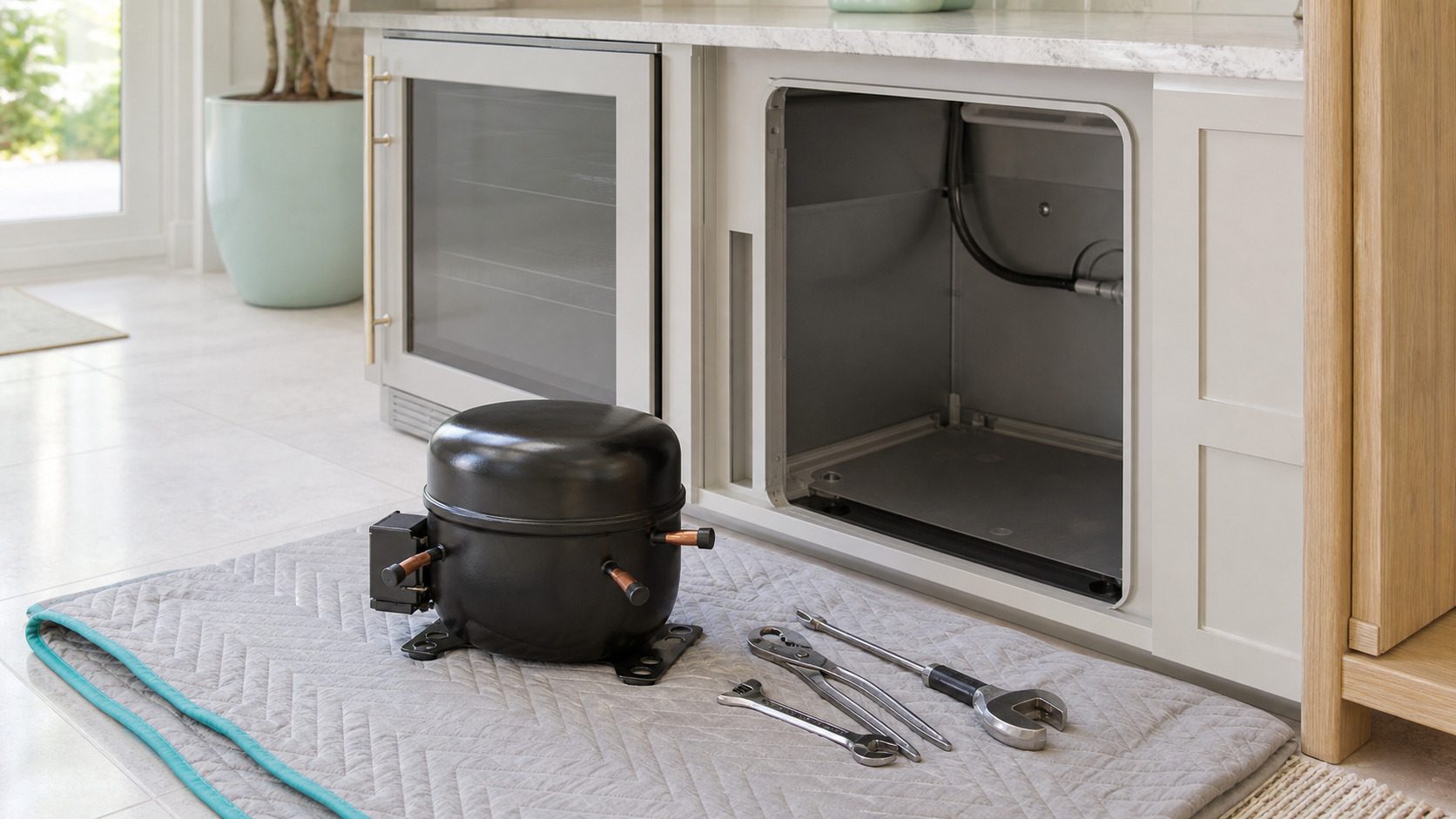

What the work actually contains
So that the figure on the cost page reads as something rather than as a number:
- Recovery of the existing refrigerant charge, properly, with equipment.
- The compressor, and a new filter drier, which is not optional.
- Evacuation, to pull the moisture out of the system before it is recharged.
- The charge, by weight, to the maker's specification.
- The access — getting an appliance out of joinery, working on it, and putting it back aligned.
On the current range the refrigerant is R600a, a hydrocarbon that is flammable. It does not change the price and it does change who may do the work.
Then the decision
Once it genuinely is the compressor, here is how we think about it. You are welcome to disagree with the conclusion as long as you have the reasoning.
Repair is usually right when: the cabinet is one of the larger or dual-zone models, it is in good order otherwise, it is integrated behind a custom panel that would be expensive to match, or it is one of a pair where replacing one half would leave two mismatched fronts in a kitchen.
Replacement is usually right when: the cabinet is one of the smaller models, it is out of production, the repair is approaching a large fraction of what a new one costs, or there are other things already tired — a hardened seal, a dropped door, a control programmed to the wrong model by somebody.
The panel question matters more than people expect. An integrated U-Line carries a cabinet front made for your kitchen. Replacing the appliance may mean the panel no longer fits, and cabinetry is not cheap. That has kept more of these units alive than any argument about compressors.
What we will actually tell you
The figure in writing, what it is made of, what the appliance is worth, and which side of the line we think it falls on. If it is close, we will say it is close.
What we will not do is quote a compressor and stop talking, on an appliance where that work is sometimes most of a new one.
If it turns out to be a repair
What this leads to, and what it costs
Every job on this site is priced the same way: an on-site diagnostic first, the figure agreed in writing before anybody starts.
-
from $850 Compressor replacement cost
What compressor replacement costs on a U-Line in South Florida, from $850, and the four things that move that number. No final price is published anywhere on this site: the figure is confirmed on site after the diagnostic and agreed in writing before anything is opened.
- from $850, and what changes it
- Confirmed on site, agreed in writing
- The diagnostic fee credited toward the work
-
from $395 Variable-speed compressor and inverter repair
The 5 Class runs its compressor between 1,400 and 6,300 RPM under an inverter, and the maker's own compressor sheet names that inverter as both the starting device and the overload. So on these units the thing that used to be a relay and a start capacitor is a driver board, and a compressor that will not start is a different diagnosis and a different bill from the same symptom on an older machine.
- Inverter driver diagnosed before the compressor is condemned
- Compressor speed read and set from the service menu
- Priced apart from a conventional start problem, because it is one
-
from $165 Thermistor and temperature sensor replacement
The most likely single failure on a U-Line, and the one the appliance is designed not to mention. When a zone sensor fails the unit does not stop — the maker's own backup keeps it cooling on a fixed cycle to protect what is inside, and it otherwise behaves normally. So the complaint that arrives is never "the sensor has failed". It is "it runs all the time and still is not cold enough".
- The failure behind most "not cold enough" calls
- Measured against the maker's own figure, not swapped on sight
- Connections cleaned and re-greased, which is half the repair
Questions people ask about this
How much does it cost to replace a refrigerator compressor?
It is the largest repair on this equipment and it has its own cost page with a starting figure and the reasoning behind it. What is in that work: recovery of the existing charge, the compressor, a new filter drier, evacuation, a recharge by weight, and getting the appliance out of the joinery and back in.
Is it cheaper to repair or replace?
It depends on the cabinet, and this is the one page where we would rather give you the arithmetic than an opinion. Against a large dual-zone wine cooler the repair is clearly worth it. Against a small beverage center that is out of production, it is most of a new appliance and the honest answer is usually no.
How long should a compressor last?
In ordinary use, well over a decade, and often the appliance is retired for other reasons first. What shortens it is being made to work harder than it should — a condenser that has never been cleaned, a grille with something standing in front of it, an outdoor unit in salt air on an indoor service schedule.
My unit is a 5 Class. Is it the same job?
No, and this is worth insisting on. The 5 Class runs a variable-speed compressor between 1,400 and 6,300 RPM under an inverter, and U-Line's own compressor sheet names that inverter as both the starting device and the overload. The driver is cheaper and fails more often than the motor, and testing it first is a different and much smaller repair.
Could it be something else entirely?
Very often. On this make a cabinet that runs constantly and never reaches its set point is the signature of a failed temperature sensor, because U-Line's backup mode keeps the unit cooling on a fixed cycle while showing nothing. That is a small repair wearing the costume of the largest one.
